HCYY11112001 Forklift Tilt Cylinder for 3-5 Ton Heli Hangcha
HCYY11112001 forklift tilt cylinder for 3-5 ton forklifts. Fits Heli, Hangcha, TCM models. Heavy-duty hydraulic design, fast delivery, OEM quality.

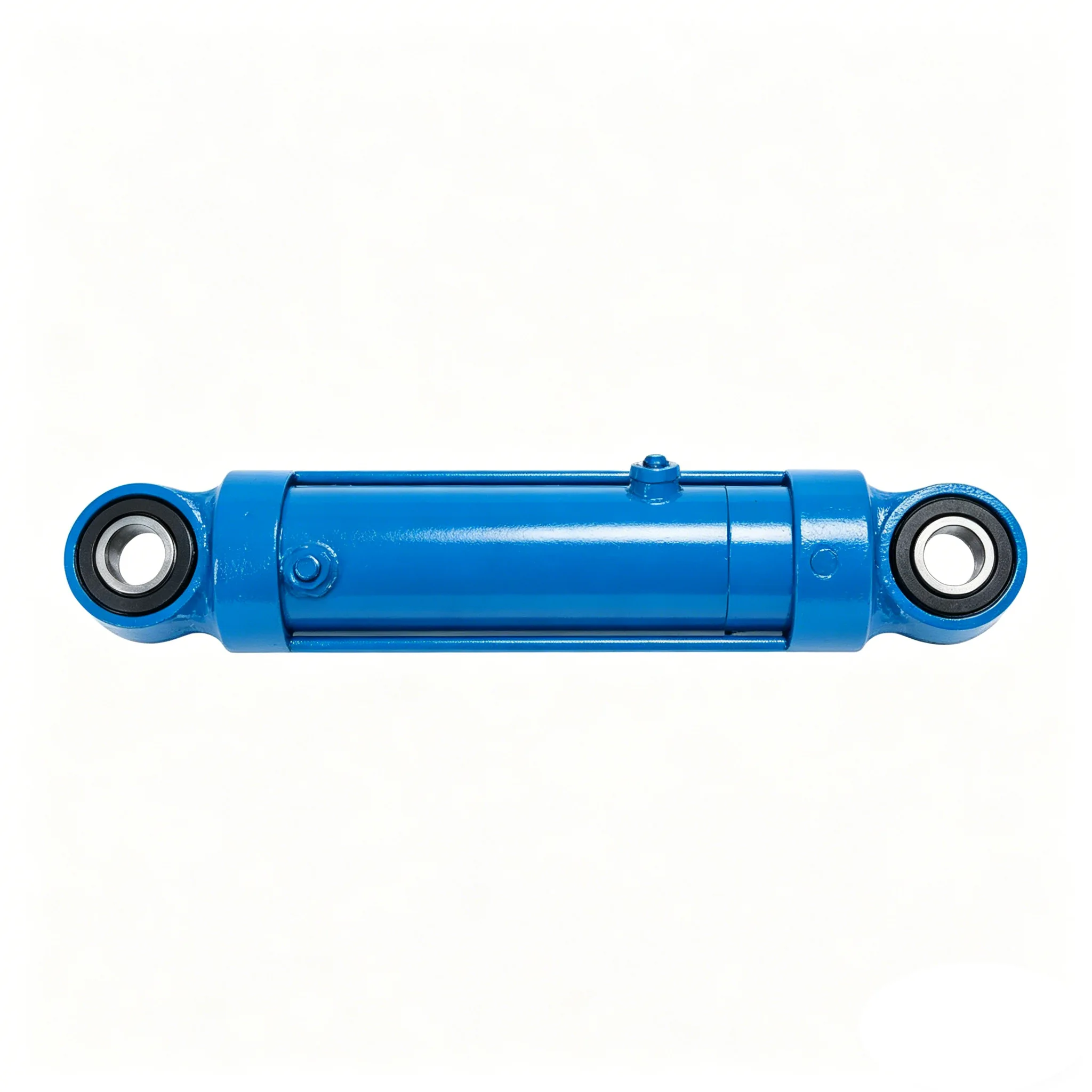

What Is the HCYY11112001 Forklift Tilt Cylinder?
The HCYY11112001 is a hydraulic tilt cylinder engineered for counterbalance forklifts in the 3-ton to 5-ton load class. In plain terms, it is the muscle that tips the mast forward when the operator needs to slide forks under a pallet, and pulls it back when the load needs to sit stable during travel. Without a healthy forklift tilt cylinder, stacking accuracy drops, cycle times grow, and operators compensate with rougher handling — all of which costs money.

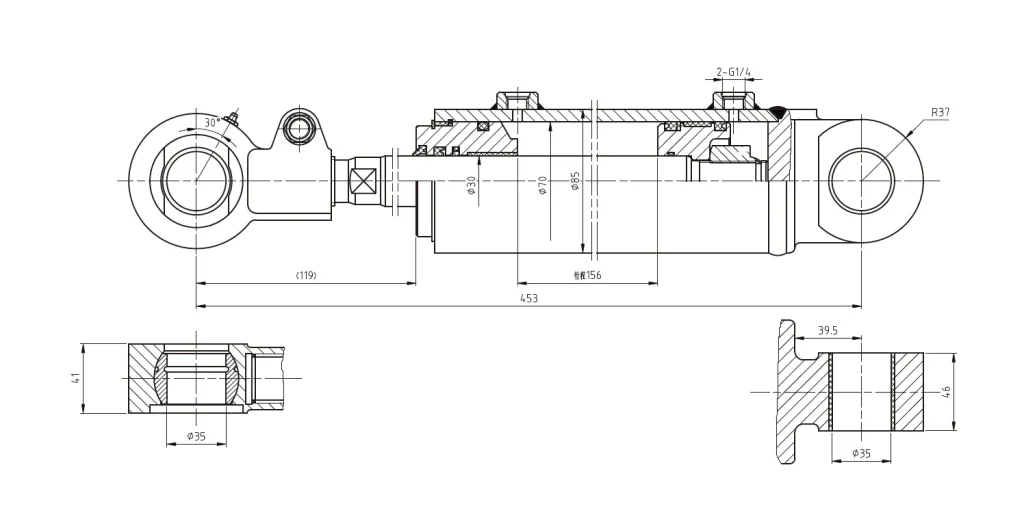

Bore Ø70 mm, rod Ø30 mm, stroke 156 mm, mounting distance 453 mm — the dimensions are cut to match OEM envelopes used by Heli, Hangcha, TCM and compatible 3–5 ton trucks. It bolts in where the original unit came out, with no frame modification required.
How the Tilt Cylinder Powers Every Lift Cycle
Every time the forklift engages or releases a pallet, a tilt cylinder converts hydraulic pressure into linear force and tilts the mast between roughly 6° forward and 12° backward. A warehouse forklift averages 3–6 tilt actions per minute, which translates into more than 150,000 load cycles per year in a two-shift operation. The tilt cylinder is therefore one of the highest-duty components on the truck — second only to the lift cylinder.
HCYY11112001 Technical Specifications
Every parameter below is verified on our test bench before the tilt cylinder leaves the factory. No estimates, no typical values — these are the actual figures for the HCYY11112001 forklift tilt cylinder.
Features That Matter on the Shop Floor
Hard Chrome Plating
Rod chrome thickness within 0.03–0.05 mm extends service life in humid warehouse air and resists scoring from seal debris.
Pressure Safety Margin
Rated for 18.1 MPa working, survives up to 27 MPa — a 1.49× buffer for spikes when lifting off uneven surfaces.
Leak Rate per Cycle
Imported NOK / Hallite seal kits hold internal leakage below 0.3 ml per full stroke after 500-hour run-in testing.
Cycle Life Tested
Bench-tested past 1 million tilt cycles at rated pressure — roughly 5 years of two-shift warehouse duty.
Pressure Tested
Every tilt cylinder individually pressure-tested at 25 MPa before shipment. No statistical sampling.
OEM-Matched Mounting
453 mm installation distance and pin-hole pattern matches the factory unit — no drilling, no brackets, no downtime.
Why Choose Us as Your Forklift Tilt Cylinder Supplier?
Dozens of workshops advertise hydraulic tilt cylinder parts online. The difference shows up three months after installation, when bad seals fail and cheap rods start scoring. Here is what you get from Canada Driveshaftcentre Co., Ltd:
- 01
In-house CNC machining and rod honing — no outsourcing of critical surfaces, so we control tolerance batch to batch. - 02
7–15 day lead time for stock HCYY11112001 units; 25 days for branded OEM runs with custom laser-marked serials. - 03
12-month manufacturing warranty with free replacement on any confirmed manufacturing defect. - 04
Seal kits and rod assemblies on the shelf — a forklift tilt cylinder lasts longer when the wear parts are one email away. - 05
Global shipping from Richmond, BC — port of Vancouver for North American buyers, partner warehouses in Shanghai and Rotterdam for the rest.
Where the HCYY11112001 Tilt Cylinder Earns Its Keep
The HCYY11112001 is sized for the heart of the material-handling market — 3 to 5 ton counterbalance forklifts. It performs well wherever daily tilt cycles stack up fast:
Pallet racking, cross-docking, order picking.
Raw material feed, finished goods staging.
Light container handling, empty repositioning.
Sub-zero tested seals keep tilt response sharp.
Bricks, bagged cement, steel bundles.
Heavy, uneven loads — the safety margin matters.
Compatible forklift brands (by dimension match): Heli CPCD30–50, Hangcha CPCD30–50, TCM FD30–50, Lonking LG30–50T, and equivalent 3–5 ton models. Confirm by sending us your truck serial number.
Frequently Asked Questions
Q1. Which forklift capacity does the HCYY11112001 fit?
It is dimensionally matched to 3-ton through 5-ton counterbalance forklifts. Installation distance is 453 mm and the Ø70 bore handles the mast tilt load of this class comfortably. For 1–2 ton or 7+ ton trucks, ask us about our HCYY series equivalents.
Q2. What is the difference between Hydraulic Steering & Tilt Cylinders, and is this a heavy-duty hydraulic tilt cylinder for 3-ton to 5-ton forklifts?
Steering cylinders turn the rear wheels; tilt cylinders tilt the mast. The HCYY11112001 is a heavy-duty hydraulic tilt cylinder purpose-built for 3-ton to 5-ton forklifts, rated 18.1 MPa working with a 27 MPa safety ceiling.
Q3. How long does this tilt cylinder last, and can we install it in-house?
Bench-tested service life exceeds 1,000,000 cycles, which lines up with 3–5 years of two-shift warehouse operation. Installation takes a trained hydraulics technician roughly 60–90 minutes. Drain the line, swap the pins, bleed, done.
Q4. Do you supply seal kits and spare piston rods?
Yes. Matching seal kits, piston rods and gland assemblies for the HCYY11112001 are stocked as standalone SKUs, so you can refurbish in-field without importing a whole new tilt cylinder each time a rod seal tires out.
What Operators & Distributors Say
Pair It With
A forklift tilt cylinder performs best when the surrounding hydraulic parts are healthy. Most customers order one or more of the following alongside the HCYY11112001:
Seal Kits (HCYY11112001-SK)
NOK/Hallite seal sets for in-field refurbishment. Keep two on the shelf per truck.
Forklift Lift Cylinder
Main mast lift cylinders in matching 3–5 ton dimensions. Same QA path as the tilt unit.
Hydraulic Gear Pump
Replacement gear pumps to restore the pressure your tilt cylinder was designed for.
Hydraulic Hose & Fittings
High-pressure hoses and JIC fittings sized for tilt circuit pressure.
Mounting Pins & Bushings
Hardened pins and bronze bushings — cheap insurance during a cylinder swap.
