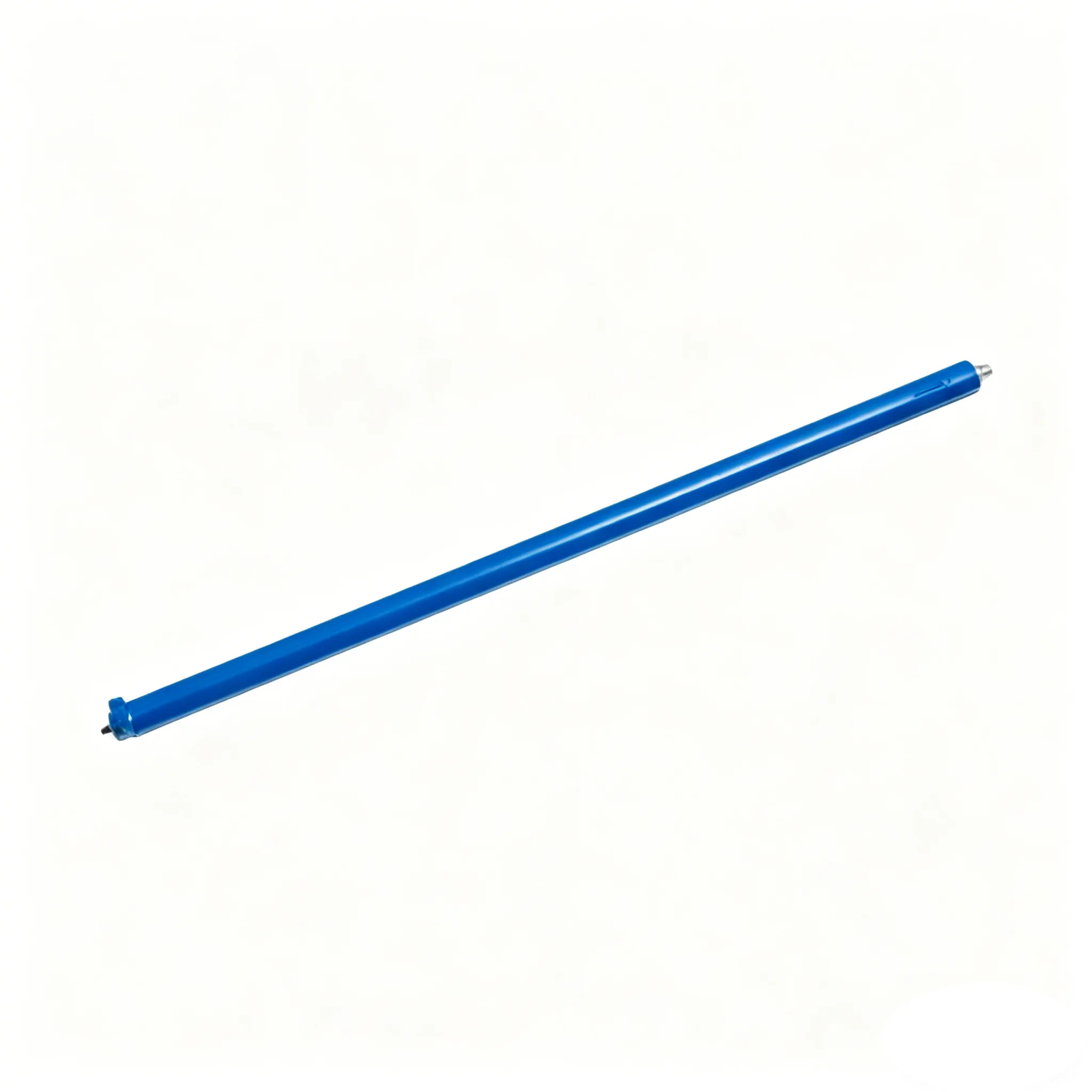

HCYY11112000 Heavy Duty Forklift Lift Cylinder 1500mm Stroke
The HCYY11112000 forklift lift cylinder delivers 1500mm vertical stroke with 18.1 MPa operating pressure and 27.15 MPa burst resistance. Featuring a Ø45mm chrome-plated piston rod and micro-honed barrel, this heavy-duty hydraulic cylinder ensures smooth, leak-free lifting for 2.5–3.5 ton forklifts. Ideal for warehouses, ports, and logistics hubs requiring reliable mast lift performance.
HCYY11112000 Forklift Lift Cylinder: High-Efficiency Vertical Handling Solution
Heavy-Duty Forklift Cylinder Replacement with 1500mm Stroke for Maximum Reach
The Power Behind Vertical Precision
The HCYY11112000 Forklift Lift Cylinder is a critical hydraulic component engineered for rapid and stable vertical load management. Unlike standard cylinders, this model is specifically tuned for high-frequency lifting cycles, providing the essential kinetic force required to elevate heavy pallets with millimeter-perfect accuracy.
As a leading Forklift Lift Cylinder supplier, we understand that hydraulic failure leads to costly downtime. That is why the HCYY11112000 utilizes a Forklift mast tilt cylinder with chrome plated piston rod technology, ensuring that the internal seal remains intact and friction-free even after thousands of operation hours in abrasive environments like shipyards and logistics hubs.
HCYY11112000 Forklift Lift Cylinder Core Operational Role
This cylinder manages the primary vertical movement of the forklift carriage. By converting pressurized fluid from the hydraulic pump into linear lift, it maintains the structural equilibrium of the mast. Its 1500mm stroke is optimized for standard rack heights, making it the ideal Custom hydraulic tilt cylinder for forklift material handling equipment choice for warehouse optimization.

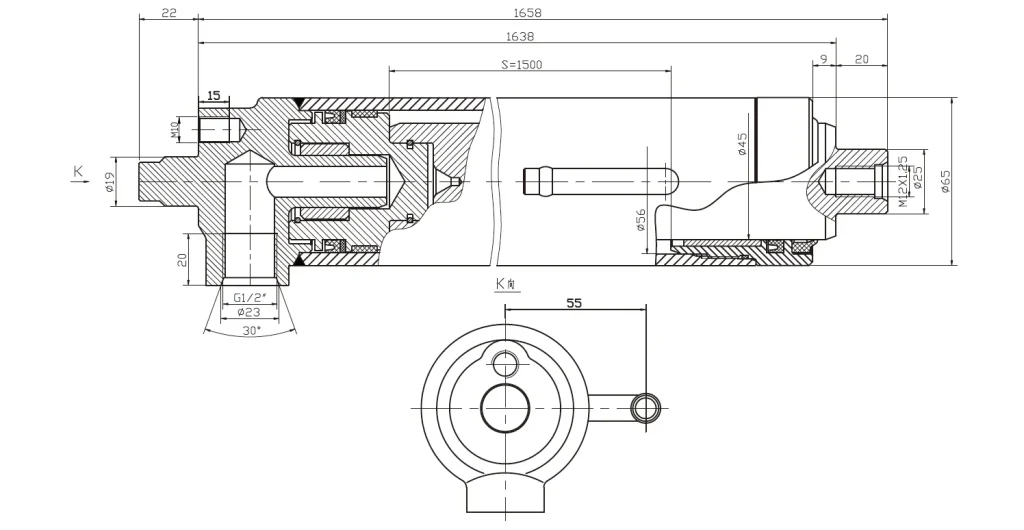

HCYY11112000 Forklift Lift Cylinder Technical Matrix
| No. | Technical Item | Specification Data |
|---|---|---|
| 01 | Main Model Number | HCYY11112000 Series |
| 02 | Dimension Parameters | Ø56 × Ø45 × 1500 mm |
| 03 | Operational Pressure | 18.1 MPa (Safe Range) |
| 04 | Peak Burst Resistance | 27.15 MPa (Safety Margin) |
| 05 | Vertical Stroke / Travel | 1500 mm |
| 06 | Mounting Distance | 1658 mm |
| 07 | Component Weight | 33.0 kg (Ultra-Rigid Build) |
HCYY11112000 Heavy Duty Forklift Lift Cylinder
——Installation & Positioning Guide
The HCYY11112000 is primarily installed vertically within the forklift mast assembly. Proper alignment during installation is non-negotiable to prevent side-loading, which is the leading cause of seal failure.
- Mounting Location: Centralized behind or inside the mast rails, anchored at the bottom to the mast cross-member and at the top to the carriage or inner mast.
- Alignment Check: Use a laser level to ensure the cylinder is perfectly perpendicular. Even a 1-degree tilt can increase internal friction by 20%.
- Hydraulic Connection: Ensure the high-pressure ports are facing the hydraulic hose reel to avoid unnecessary hose tension during high-stroke extensions.
What Makes HCYY11112000 Forklift Lift Cylinder The Industry Standard?
Micro-Honed Barrel Finish
The internal barrel surface is honed to Ra 0.2μm, reducing heat buildup and extending the lifespan of hydraulic seals by 35% compared to non-honed alternatives.
Induction Hardened Rods
The Ø45mm rod features a deep-case induction hardening and 30-micron chrome plating, providing immunity to surface dings that usually shred seal kits.
Zero-Leak Seal Technology
Integrated with multi-lip premium seals that maintain pressure integrity even at the 27.15 MPa testing peak, preventing mast drift during static load holding.
HCYY11112000 Heavy Duty Forklift Lift Cylinder
——Proactive Maintenance & Care
Weekly Inspection
Wipe down the piston rod with a clean, lint-free cloth. Check for hydraulic "weeping" at the top seal gland. Early detection prevents major fluid loss.
Fluid Cleanliness
Ensure your hydraulic oil is free of metal particles. Use ISO 4406 18/16/13 standard oil to protect the 0.2μm honed finish from internal scoring.
Annual Seal Refresh
Even if no leaks are visible, seals undergo chemical aging. Replace seal kits every 2,500 operating hours to maintain 18.1 MPa integrity.
What Should You Consider When Choosing A Forklift Lifting Cylinder?
1. Static vs. Dynamic Load Rating
Ensure the cylinder is rated for 1.5x your typical lift weight. The HCYY11112000's peak pressure resistance provides the necessary buffer for sudden inertia changes during lifting.
2. Rod Surface Integrity
In dusty warehouses, a Forklift mast tilt cylinder with chrome plated piston rod is mandatory. Chrome plating acts as a defensive shield against abrasive dust and corrosive cleaning agents.
3. Precision Mounting Specs
Compatibility is king. Always verify the installation distance. Our 1658mm fixed distance ensures a direct fit for mainstream 3-ton forklift models, eliminating welding or rework.
Why Partner With Us?
We don't just sell parts; we provide structural assurance. With over 15 years in hydraulic manufacturing, our facility uses robotic welding and ultrasonic testing to guarantee consistency.
100%
Pressure Tested
ISO 9001
Certified Facility
24H
Technical Response
Engineering Support: FAQ
Q: Are you a reliable OEM cylinder for forklift accessories manufacturer?
Yes. As a top-tier OEM cylinder for forklift accessories manufacturer, we specialize in high-capacity builds. Our heavy duty cylinder for forklift accessories line is designed to outperform standard aftermarket parts in demanding 24/7 industrial logistics.
Q: What is the benefit of the 27.15 MPa max pressure?
This safety margin ensures that the cylinder remains intact during hydraulic spikes or accidental overloads, preventing structural failure and ensuring operator safety at maximum lift heights.
Q: Is this model compatible with the Forklift Cylinder Replacement standards?
Absolutely. It follows the standard sizing for most 2.5T to 3.5T forklifts. We serve as a trusted Forklift Lift Cylinder supplier for global fleets needing high-durability replacement units.
Q: Can I use this for custom material handling equipment?
Yes, its 1500mm stroke makes it a popular Custom hydraulic tilt cylinder for forklift material handling equipment for specialized industrial lift-and-tip applications.
Q: How does the chrome plating improve maintenance?
The chrome rod resists chemical corrosion and scratching. This keeps the rod surface smooth, which directly prevents the seals from tearing, thereby reducing maintenance frequency by up to 50%.
Partner Feedback
"Fast delivery and the HCYY11112000 fits our Toyota fleet perfectly. We've seen a noticeable reduction in mast jitter since switching." — Dave R., Warehouse Manager
"High-quality chrome finish. These cylinders handle the salt air in our port facility much better than the original parts. Highly recommend for harsh environments." — Elena V., Port Maintenance Engineer
"Our old lift cylinder was so leaky the forklift looked like it was crying. Installed this new one, and now it's as dry as my mother-in-law's Thanksgiving turkey. Plus, it actually lifts things!" — John S., Logistics Operator
Complete Your Hydraulic System
Hydraulic Gear Pumps
The power source that feeds the HCYY11112000, ensuring a steady 18.1 MPa flow for smooth ascent.
Premium Seal Kits
Essential for 5-year maintenance plans. Designed specifically for our Ø56mm bore cylinders.
Hydraulic Motor
It converts the pressure energy of hydraulic fluid into mechanical energy (output torque and rotational speed) to drive a load in rotational motion.
Directional Valves
The control brain for your forklift, allowing precision fluid routing to mast and tilt cylinders.
