PTO Shaft for Jaylor Vertical TMR Feed Mixers | OEM Replacement

Product Overview

This agricultural PTO drive shaft delivers reliable power transfer from tractor to implement for Jaylor vertical TMR feed mixers. Engineered as a direct OEM replacement PTO shaft for Jaylor feed mixing equipment, it supports single auger, twin auger, and total mix configurations used in professional dairy and livestock operations. The shaft ensures consistent auger speed for thorough blending of forages, grains, and supplements, directly contributing to improved feed uniformity and animal nutrition outcomes.

A key safety feature is the integrated overrunning clutch. This mechanism transmits rotational power in one direction only. When the tractor PTO disengages during the stopping phase, the high-inertia implement continues briefly but the driveline disconnects automatically. This protects both the tractor transmission and the mixer from damaging feedback forces common in vertical TMR equipment.

Available in Size 6 (Category 4) for tractors up to 60 HP at 540 RPM and Size 8 (Category 5) for demands up to 90 HP, the shaft offers standard or Constant Velocity (CV) joint configurations. CV options accommodate the angular movement typical during mixer operation and field turns, reducing vibration and extending component life.

Technical Specifications and Power Requirements

Selection depends on tractor horsepower and PTO spline type. The following table outlines compatibility for common North American tractor configurations:

Additional specifications: Standard PTO speed 540 RPM (1000 RPM configurations available for select models). Telescoping design allows length adjustment to match tractor drawbar settings (typically 14 inches for standard yokes or 9.75 inches / 250 mm for CV configurations per Jaylor guidelines). Heavy-wall steel tubing resists torsional stress during demanding mixing cycles.

PTO Shaft Structure and Heavy-Duty Design Features

The shaft features a robust telescoping tube assembly with lemon or star profile geometry for superior torque capacity and resistance to bending. Precision-forged universal joints at both ends provide smooth power transmission while accommodating operational angles. A full-length protective safety shield meets industry standards and reduces entanglement risk during daily use.

Yokes are machined for exact spline fit on both tractor and mixer input shafts, enabling quick installation without adapters. The overrunning clutch assembly automatically disengages the driveline when the tractor PTO stops, protecting high-inertia vertical auger systems. Optional Constant Velocity joints further minimize vibration on mixers that operate at varying hitch angles.

All components are manufactured from high-tensile alloy steel with corrosion-resistant finishes. This construction supports the repeated start-stop cycles and variable loads encountered in commercial TMR preparation, delivering consistent performance across multiple seasons.

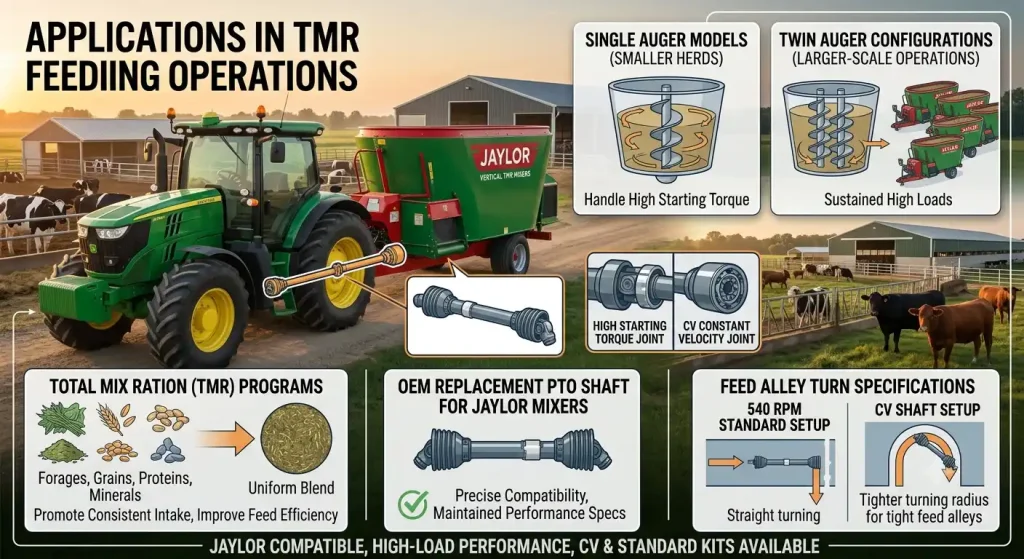

Applications in TMR Feeding Operations

This PTO shaft powers Jaylor vertical TMR feed mixers in single auger models for smaller herds and twin auger configurations for larger-scale dairy and beef operations. It supports total mix ration programs that combine forages, grains, proteins, and minerals into a uniform blend, promoting consistent intake and improved feed efficiency on professional farms.

Farmers searching for an OEM replacement PTO shaft for Jaylor feed mixing equipment value the precise compatibility that maintains original performance specifications. The shaft handles the high starting torque and sustained loads required for thorough mixing, helping operations maintain daily feeding schedules with minimal downtime. It is equally suitable for 540 RPM standard setups and operations requiring CV shafts for tighter turning radii in confined feed alleys.

Maintenance and Service Life Optimization

Routine lubrication extends service life significantly. Grease the universal joints and telescoping tube surfaces every 8–10 operating hours or weekly during heavy use with quality lithium-based grease. Inspect the safety shield, yokes, and locking pins before each season and replace worn components immediately.

Store the shaft in a clean, dry location when not in use. Support both ends to prevent sagging or bending. Avoid operating at excessive angles or with improper length adjustment, as these conditions accelerate U-joint and tube wear.

With proper maintenance, this agricultural PTO drive shaft typically achieves 3,000–6,000 hours of reliable service life under normal farm conditions. Many operators report multiple seasons of trouble-free performance when following manufacturer greasing intervals and using matched HP-rated shafts.

Frequently Asked Questions

How do I choose the correct PTO shaft size for my Jaylor vertical feed mixer replacement parts?
Select Size 6 (Category 4) for tractors rated 60 HP or less at 540 RPM. Choose Size 8 (Category 5) for tractors above 60 HP up to 90 HP. Confirm your tractor PTO spline type (1.375"-6, 1.375"-21, or 1.750"-20) and match it to the table above.

Is this an OEM replacement PTO shaft for Jaylor feed mixing equipment on both single and twin auger models?
Yes. The shaft is designed for compatibility with Jaylor Single Auger, Twin Auger, and Total Mix vertical TMR mixers, maintaining original power delivery and safety characteristics.

Does the shaft include safety features for high-inertia mixers?
Yes. The integrated overrunning clutch automatically disconnects the driveline when the tractor PTO stops, protecting the tractor and mixer from feedback forces generated by the rotating augers.

What maintenance interval is recommended for maximum service life?
Lubricate U-joints and telescoping sections every 8–10 hours of operation. Perform a full visual inspection of shields, yokes, and fasteners at the start of each season and replace any damaged parts promptly.

Can I use a Constant Velocity (CV) version with my Jaylor mixer?
Yes. CV configurations are available and recommended for operations requiring smoother power delivery at varying hitch angles during mixing and transport.
