Alloway Flail Shredder PTO Shaft Replacement (S15CD-S27CD)

PTO Shaft for Alloway Flail Shredders Overview

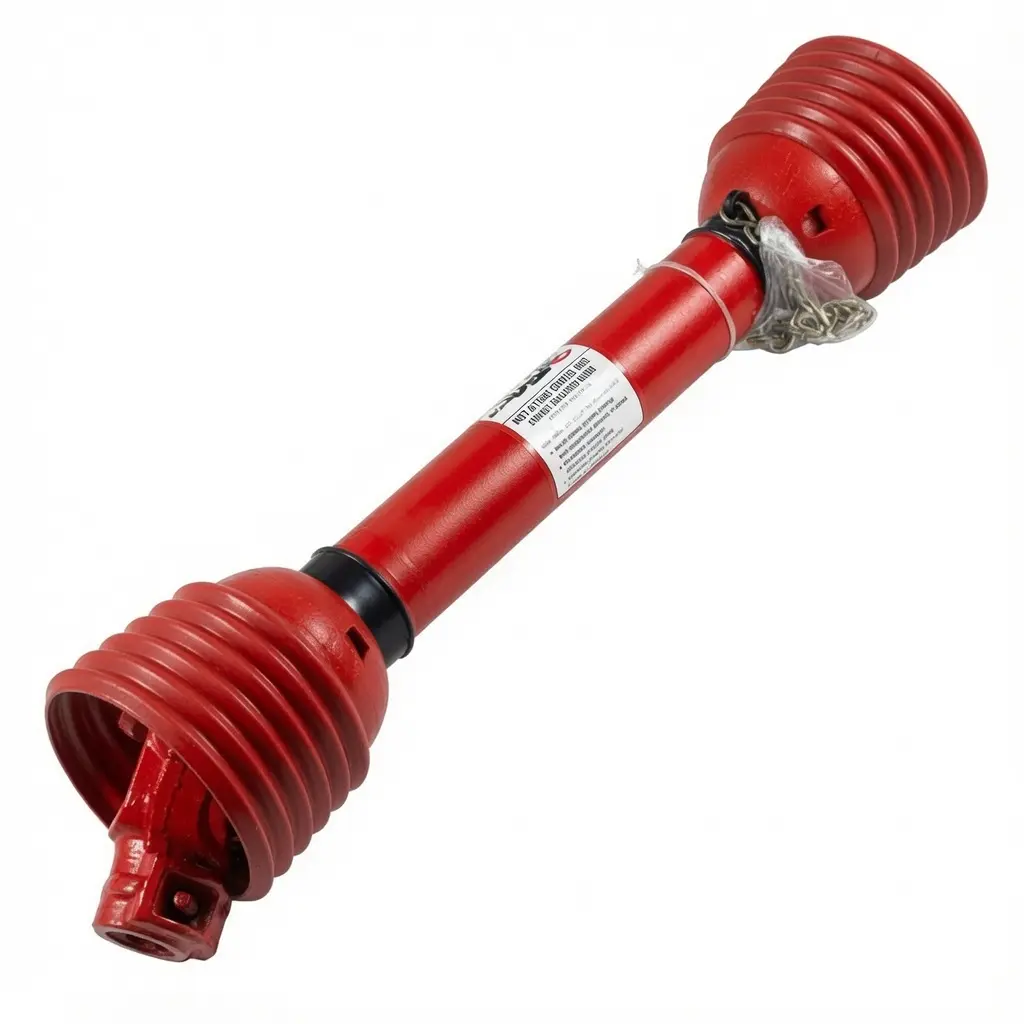

This PTO drive shaft is engineered as a direct-fit replacement for Alloway (Woods) center-drive flail shredders spanning the full S-series lineup: S15CD, S20CD, S22CD, S25CD, and S27CD. Built around a 55N splined profile, the shaft transfers rotational power from the tractor to the shredder gearbox at either 540 RPM (6-spline, 1-3/8 in. diameter) or 1,000 RPM (21-spline, 1-3/8 in. diameter), matching ISO 500 and ASAE standards used industry-wide.

These universal PTO shaft assemblies support both hitch-mounted and towed configurations, covering 2-point, 3-point, and pull-type hookups. At the implement end, a friction-style torque-limiting clutch protects the drivetrain from overload spikes during heavy crop engagement. For shredders with non-grooved input shafts, a bolt-through interference-fit device (Part No. Y5991) is available to ensure a secure, slip-free connection without machining modifications.

Compatible Alloway Models (S15CD / S20CD / S22CD / S25CD / S27CD)

The table below lists the five Alloway center-drive flail shredder models this PTO shaft fits, along with key machine specifications that influence shaft selection and torque requirements.

Note: All five models use center-drive gearbox layouts with a 12.75 in. diameter flail tube. Tractor PTO horsepower requirements increase with cutting width due to greater rotor mass and knife count.

PTO Drive Shaft Technical Specifications

Key Features of This PTO Shaft for Flail Shredders

• Dual-Speed Compatibility (540 & 1,000 RPM): A single PTO shaft for Alloway S15CD flail shredder replacement or any model through S27CD. The 6-spline configuration pairs with 540 RPM tractor outputs; the 21-spline version matches 1,000 RPM outputs. This eliminates the need for separate inventory when servicing mixed fleets.
• Overrunning Clutch Protection: Unlike shear-bolt designs that require manual replacement after each overload event, the friction-style clutch keeps transmitting reduced power during momentary overloads and automatically re-engages once the load drops. This is particularly valuable in flail shredding, where cyclic torque spikes are common when knives strike dense crop matter or hidden debris.
• Bolt-Through Adapter for Non-Grooved Shafts: The Y5991 interference-fit device locks onto smooth (non-splined) implement input shafts without requiring machine-shop modifications. This broadens compatibility across older and aftermarket gearbox configurations.
• Multi-Hitch Flexibility: Assemblies are purpose-built for 2-point, 3-point, and pull-type towing setups, covering the full range of S-series mounting configurations from compact 3-point S15CD units to towed 27-foot S27CD rigs.
• ISO 500 & ASAE Dimensional Standards: Spline geometry, shaft diameter, and rotational direction (clockwise from rear view) conform to international agricultural PTO standards, ensuring cross-brand tractor compatibility.

Applications in Agricultural Flail Shredding Operations

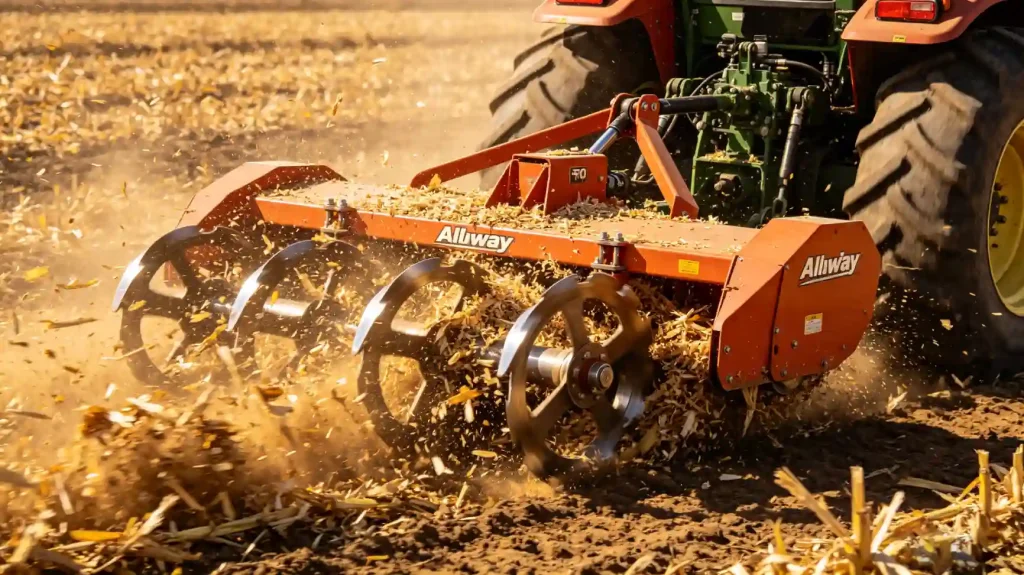

Alloway center-drive flail shredders rely on PTO shaft power to spin a 12.75 in. diameter rotor armed with heat-treated L-shaped flail knives. The tri-lateral hood design produces quadruple shredding action, slicing crop residue into fragments small enough to accelerate soil decomposition. Typical field applications include:

• Row Crop Residue: Corn stalks, cotton stalks, milo/sorghum stalks post-harvest. A properly matched PTO shaft for Alloway S25CD or S27CD models handles fields at 6 to 8 mph ground speed.
• Specialty Crops: Potato vines, sugarbeet tops, and vegetable residue in truck-crop rotations.
• Cover Crop Termination: Flail shredding winter rye, crimson clover, or cereal cover before spring planting.
• Orchard & Vineyard Floor Management: Pruning debris and grass control between tree rows using narrower S15CD or S20CD configurations.
• CRP & Conservation Land: Maintaining grassland stands and reducing thatch buildup on Conservation Reserve Program acreage.

For machines operating in heavy-residue corn or cotton (stalks exceeding 1.5 in. diameter), running the PTO at 540 RPM at rated engine speed delivers the torque needed without over-speeding the rotor.

Installation and Maintenance Guidelines

Before Installation:

• Verify whether the shredder input shaft has a splined groove or is smooth. Grooved shafts accept the 55N spline directly; smooth shafts require the Y5991 bolt-through adapter.
• Confirm the tractor PTO output speed (540 or 1,000 RPM) and match the spline count accordingly: 6-spline for 540 RPM, 21-spline for 1,000 RPM.
• Measure the tractor-to-implement distance at the intended hitch height. The telescoping shaft section must have a minimum overlap of 6 in. (150 mm) at full extension to maintain structural integrity.

Installation Steps:

• Slide the tractor-end yoke onto the PTO stub shaft until the locking mechanism (push-pin or twist-collar) engages fully.
• Connect the implement-end yoke to the shredder gearbox input shaft. Ensure the clutch pack is oriented with the friction surfaces facing the gearbox side.
• Install all safety shields and chain guards. Verify that the plastic or metal shield tubes rotate freely around the shaft without binding.

Routine Maintenance (Every 50 Operating Hours):

• Grease all universal joint crosses and the telescoping tube splines. Use NLGI #2 lithium-complex grease.
• Inspect the clutch friction discs for wear or heat discoloration. Replace if disc thickness falls below the manufacturer minimum.
• Check all shield fasteners and chain guard pins. Replace any cracked or missing shields immediately.
• Examine the shaft tubes for dents, cracks, or bending. Even minor deformation can cause vibration at operating speed.
